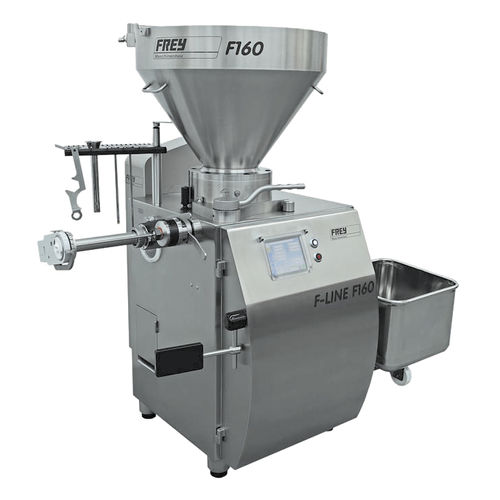

Continuous vacuum filler F-Line F160 series

servo-drivenfor sausages

Fully electronic, continuous vacuum stuffer for STRAIGHT FILLING, PORTIONING and LINKING with removable ADG04 linking gear and Top-Line drive. • Filling capacity up to approx. 3,600 kg/h • Machine housing and hopper made entirely of stainless steel • Solid hopper approx. 160 liters • Optional: Divisible hopper approx. 40/160 liters possible • Filling pressure up to max. approx. 40 bar • Digitally-controlled vacuum system • Electrically locked step • Vacuum pump 21 m³/h • Total connected load 9.5 kW • Rotary current 400 Volt, 50 Hz • Including standard accessories and accessory holder • FREY TC 266 touch control (TC 733 optional) • Industrial PC control • 8.4 inch TFT color display (800 x 600 pixels) • Intuitive operation by touching the display (touch operation) • Self-explanatory operation • CAN bus for high-speed communication with attachments • Ethernet interface • USB interface • Portioning range 5 - 100,000 g (5 - 999 g in 0.1 g increments) • Portioning speed max. 600 portions/min. • Speed and pause lengths are infinitely variable • Flow measurement, piece counter, count-based auto stop • Flow-reverse mechanism and adjustable 1st portion weight • Error display, memory for 200 filling programs, incl. cooked sausage programs • Electronic pulse control for clipping machine The F-LINE F160 SA is equipped with a high-speed servo linker. This ensures the highest linking precision and speed. The servo linker is used as a drive for the optional WK98 grinding head system.
