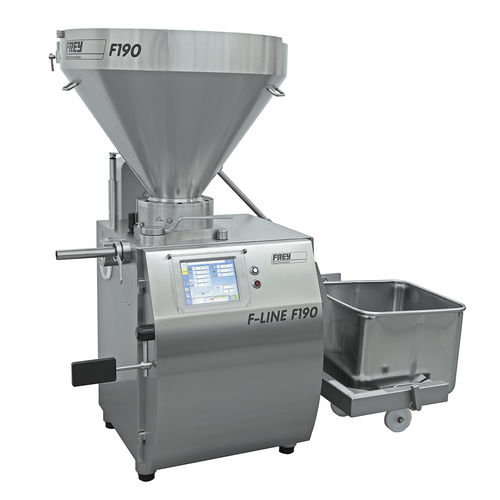

Sausage vacuum filler F-Line F190 series

Fully electronic continual vacuum stuffer for STRAIGHTFILLING, PORTIONING and LINKING with detachable linking gear ADG04 and GLOBAL DRIVE. filling power up to 3.600 kg/hour housing and hopper completely made of stainless steel filling hopper divisible 250 liters filling pressure: 40 bar electronically locked step digital controlled vacuum system vacuum pump 21 m³/hour total connected load 10,5 kW 400 volts, 50 Hz including accessories and accessories holder Frey Touch Control TC 266 (optionally: TC 733) Industrial-PC control 8,4 inch TFT colour display (800 x 600 pixels) Intuitive operation by touching the screen (touch operation) operating self-explanatory CAN bus system for high speed communication with attachments Ethernet interface USB interface portioning range 5 - 100.000 g (5 - 999 g in 0,1 g steps) portioning speed max. 600 portions/min. speed and length of portioning pauses infinitely adjustable counter of passage quantity, piece counter, automatic stop control flow-reverse mechanism and adjustable 1st portion weight memory for 200 filling programs, incl. programs for cooked sausage electronic pulse control for clipping machines The type F-LINE F190 SA is equipped with a high speed servo linker. this ensures highest precision in linking and speed. The servo linker serves the optional available grinding head system WK130 as a drive. The machine can be equipped with a lifting and dumping device for 200 liters norm trolleys. Pick-up turned to 90 degrees, frontal slide-in (Lift F-LINE F190 Art. No.: 77 500 000.00)
