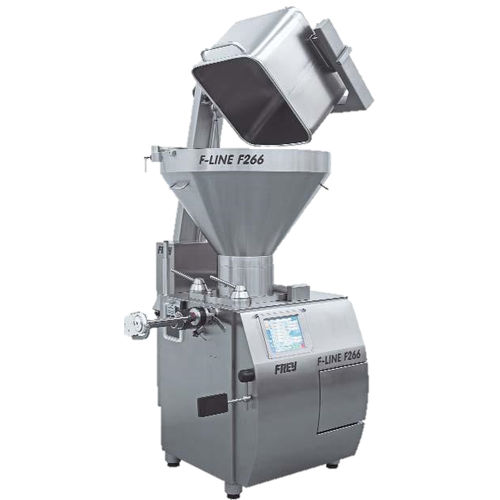

Sausage vacuum filler F-Line F266 series

Fully electronic continual vacuum stuffer for STRAIGHTFILLING, PORTIONING and LINKING with detachable linking gear ADG04 and GLOBAL DRIVE. This machine is fitted with an additional stirrer drive. filling power up to 11.000 kg/h filling pressure 35 bar (inner and outer) machine housing and hopper made completely of stainless steel filling hopper 300 litres electronically locked step integrated vacuum system and water separator vacuum pump 21 m³/hour total connected load 16,5 kW 400 volts, 50 Hz including accessories and accessories holder FREY Touch Control TC 733 Industrial-PC control 12 inch TFT colour display (800 x 600 pixels) intuitively operatable by touching the display operating self-explanatory CAN bus system for high speed communication with attachments Ethernet interface USB interface table of contents showing the product name in the program portioning range 5 - 100.000 g (5 - 999 g in 0,1 g steps) portioning speed max. 1120 portions/min. speed and length of portioning pauses infinitely adjustable counter of passage quantity, piece counter, automatic stop control flow-reverse mechanism and adjustable 1st portion weight error indicator memory for 200 filling programs incl. programs for cook sausages electronic pulse control for clipping machines The type F-LINE F266 SA includes a high speed servo linker. It guarantees highest precision in linking and speed possible. Also, the servo linker is used for driving the grinding head system WK130. The machine can be equiped with a lifting and dumping device for 200 litre norm trolley, ex factory. (Lift F-LINE F266 Art. No.: 77 500 000.00)
