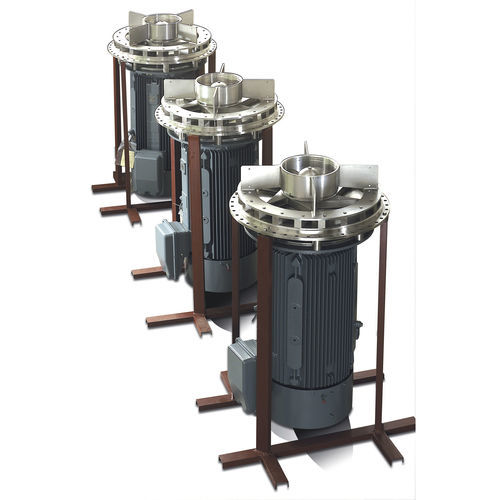

Turbine agitator FRIBORATOR series

gas/liquidhydraulic

The units for installation in gas/liquid reactors are characterized by their simple design, extreme durability and particularly high local energy dissipation densities. This produces ultra-fine bubble gas/liquid dispersions, which enable a high mass transfer from the gas to the liquid phase. The units of the FRIBORATOR type are supplied in sizes from 1 kW to 240 kW, although larger systems are also possible if required. The following features characterize the gasifiers of the FRIBORATOR C series: Self-priming operation without pre-pressure blower High turbine speeds Direct drive of the hydraulic rotor/stator unit Design in standard stainless steels (1.4571 and 1.4404) or in special steels Single- or double-acting mechanical seal Pre-pressure operation in pressure reactors and headspace suction possible Different drive concepts Drive types Self-priming gas supply agitators of the FRIBORATOR series C are available for gas volume flows up to 4,000 m³/h and power ratings up to 240 kW. Depending on the size, they operate in speed ranges from 800 – 1500 rpm and can be supplied with different drive types according to requirements and performance class: with standard asynchronous motor with pole-changing (PU) asynchronous motors with frequency controlled motors with pressure-enclosed ATEX motors with water-cooled multi-motor drives
