Operating handwheel K0162 series
control2-spokewith handle

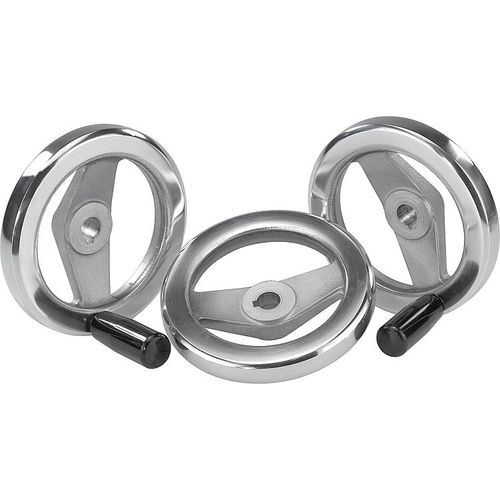

Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle - image - 2
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle - image - 3
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle - image - 4
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle - image - 5
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle - image - 6
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle - image - 7
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle - image - 8
Operating handwheel - K0162 series - HEINRICH KIPP WERK GmbH & Co. KG - control / 2-spoke / with handle - image - 9
Add to favorites
Compare this product


Characteristics

Function
operating, control
Configuration
2-spoke, with handle
Material
steel
Outside diameter

Min.: 80 mm
(3.15 in)

Max.: 250 mm
(9.84 in)

Bore size

Min.: 10 mm
(0.39 in)

Max.: 26 mm
(1.02 in)

Description

Material: Handwheels aluminium. Cylinder grip black thermoset PF 31-DIN 7708, centre pin electro zinc-plated steel. Version: Wheel rim turned and polished. Radial and axial run-out of rim < IT 12. On request: Hubs with square socket or powder-coated handwheels.
