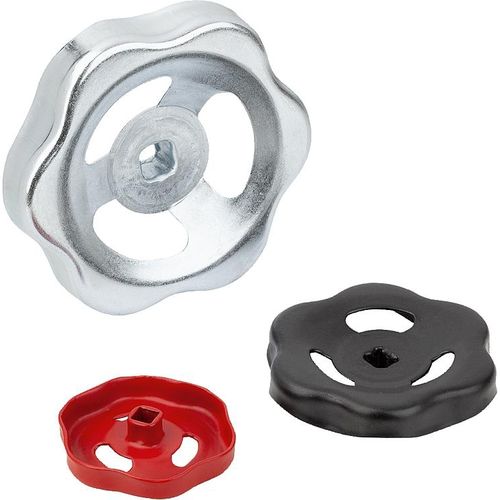

Operating handwheel K1661 seriescontrol3-spokesteel
Add to favorites
Compare this product
Characteristics
- Function
- operating, control
- Configuration
- 3-spoke
- Material
- steel
- Outside diameter
Max.: 130 mm
(5.12 in)Min.: 50 mm
(1.97 in)- Bore size
Max.: 11.9 mm
(0.47 in)Min.: 5.9 mm
(0.23 in)
Description
Material:
Steel.
Version:
Powder-coated black RAL 9005, red RAL 3000 or trivalent blue passivated.
Note:
Especially suitable for stop valves. The handwheels are made from a single piece. The handwheel is strengthened in the hub area using a special forming process. The tapered hub allows easy mounting and ensures secure seating on the square bar.
Drawing reference:
1) Square on shaft
