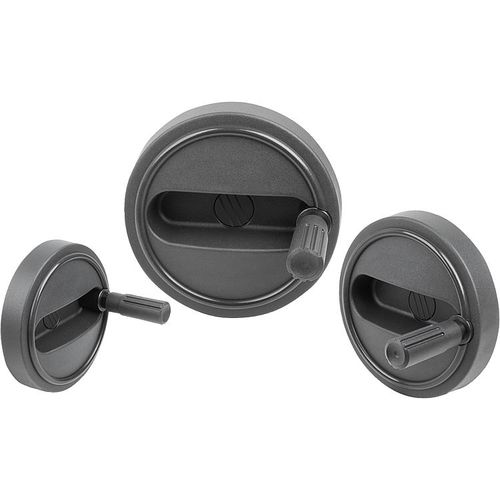

Operating handwheel K0257 seriescontrolspokedwith handle
Add to favorites
Compare this product
Characteristics
- Function
- operating, control
- Configuration
- spoked, with handle
- Material
- thermoplastic, steel
- Outside diameter
Max.: 160 mm
(6.3 in)Min.: 80 mm
(3.15 in)- Bore size
Max.: 16 mm
(0.63 in)Min.: 8 mm
(0.31 in)
Description
Material:
Black grey thermoplastic.
Version:
Steel parts black oxidised.
Note:
The hub cover and the revolving cylinder grip are supplied unassembled. To assemble, screw the grip into the tapped hole.
The handwheels can be secured using a transverse pin or by parallel key connection together with a DIN 6912 socket head screw and a DIN 7349 washer.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
