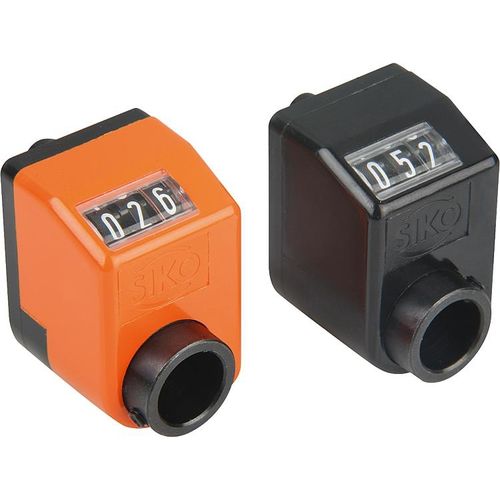

Position indicator K0408 series

analogin-linecompact

Material: Housing polyamide 6. Hollow shaft steel. Screen plastic. Grub screw steel.Version:Impact-resistant housing. Hollow shaft black oxidised. Grub screw black. Dial black, digits white.Note:Position indicators allow direct reading of input measurement values at a glance. In addition, the value indicated per spindle rotation (corresponding spindle pitch) can be selected and the various indicator values are realised by a transmission gear. The position indicators are distinguished by their small construction with very clear display. They are especially suitable for small spindle distances and small shaft diameters and have a torque support that is positioned in a hole on the side. ** At the 1st asterisk give assembly position and at the 2nd asterisk give the count direction (see sample order “assembly position, count direction”).Technical data:– Counter consisting of 3 10-position dials – Height of figures about 4 mm – Hollow shaft Ø 10 H7 mm – Temperature resistant to 80 °C – Oil and solvent resistantOn request:– Stainless steel driveshaft – Indicator for inchAccessory:– Reducing bushes K0412
