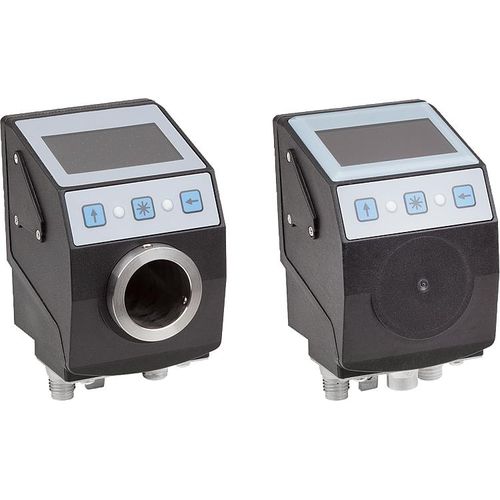

Position indicator K1657 series

analogin-linecompact

Material: Housing plastic. Shaft stainless steel. Connector thread brass. Earthing terminal metal.Version:Nickel-plated brass. 1x M8 connector (A coded), 4-pole, 1x pin.Note:The IO link-enabled position indicators are used to check format adjustments, in order to effectively reduce set-up times and increase machine efficiency. The two-line LCD display can display both the setpoint value and the actual value. Two LEDs give the user visual signals indicating whether the setpoint and actual values match (LEDs lit green) or do not match (LEDs lit red). The LEDs also indicate to the user which direction of adjustment to apply in order to reach the desired position. Position indicators K1657.1530 and K1657.1650 are linked to the application by a shaft. The position of the application is determined by a robust sensor system which uses magnetic scanning. Position indicators K1657.1531 and K1657.1651 are mounted directly in the application. The position is determined by a magnetic sensor (K1658) and a magnetic tape (K1663). Suitable only for linear length measurement.Technical data:Position indicators K1657.1530 and K1657.1650: Rotation speed: ≤500 rpm Operating voltage: 24 V DC ±20 % Current consumption: ~30 mA Battery life: ~5 years Resolution: 880 increments/rotation Measurement range: ≤11914 rotations Ambient temperature: 0 °C to +60 °C Storage temperature: -20 °C to +80°C Position indicators K1657.1531 and K1657.1651: Operating voltage: 24 V DC ±20 % Current consumption: ~30 mA Battery life: ~5 years Resolution: 0.01 mm (with magnetic sensor K1658)
