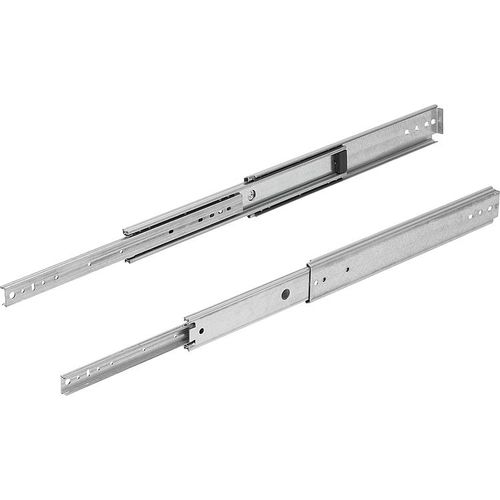

Telescopic slide K1581 seriessteelC
Add to favorites
Compare this product
Characteristics
- Extension
- telescopic
- Other characteristics
- steel, C
- Stroke
Max.: 910 mm
(35.8 in)Min.: 310 mm
(12.2 in)- Length
Max.: 910 mm
(35.8 in)Min.: 310 mm
(12.2 in)
Description
Material:
Steel slides.
Plastic ball cages.
C-steel balls.
Version:
Slides electro zinc-plated.
Balls hardened.
Note for ordering:
Supplied in pairsNote:On telescopic slides with full extension, the travel is equal to the installed length, which ensures greater comfort and accessibility. Interlocking in closed position.
The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The specified load capacities refer to the maximum value for 60,000 cycles.
Note:
The load capacity of all telescopic slides is tested to DIN EN 15338 Level 3.
