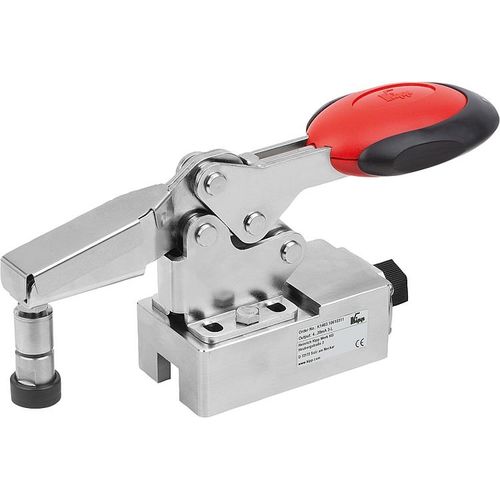

Horizontal toggle clamp K1463 series

with safety interlockstainless steel

Material:Clamp stainless steel. Grip polyamide. Release lever TPE. Force sensor stainless steel. Electronics housing stainless steel. Spacer sleeve stainless steel. Grub screw stainless steel. Protective cap thermoplastic.Version:Stainless steel parts bright. Protective cap black.Note:incl. 1 set clamping elements K1464Technical data: Force sensor: Nom. force Fnom: clamping force F4 Calibration range: 0 - clamping force F4 Overall system accuracy: 5% Fnom Limit force FL: 120% Fnom Breaking force FB: >200% Fnom Nom. temp. range BT,nom: -20 - +60 °C Amplifier electronics: Operating voltage: 10 - 30 V DC Output signal (rated output) Cnom: 4 - 20 mA 3-wire Permitted load: <(Ub- 10V)/0.024 A Electrical connection: M12x1 Pin assignment: 1: UB+ 2: - 3: 0V / S- 4: S+ Protection class: IP66 Application:Toggle clamps are used to hold and clamp workpieces. They are used as mounting and holding fixtures. The toggle clamp with force sensor enables measurement and adjustment of the retaining force. Workpieces can be defined and the retaining force recorded. The clamping element is used to adjust the retaining force. Clamping elements with different heights are available for workpieces with different thicknesses.Accessory:K1464 Drawing reference: 1) Clamping element K1464
