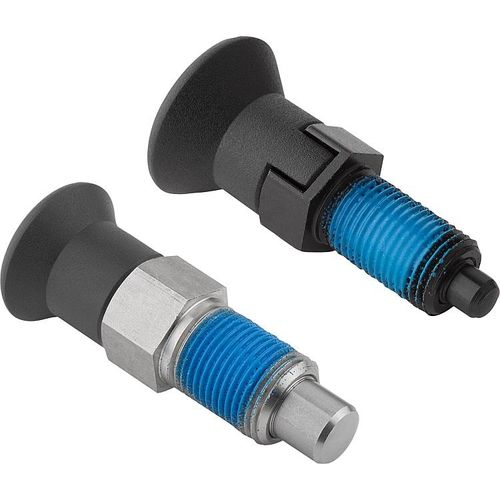

Stainless steel indexing plunger K1096 series

Material: Steel version: Indexing pin hardened: Threaded sleeve and indexing pin free-cutting steel Stainless steel version: Indexing pin hardened: Threaded sleeve 1.4305 Indexing pin 1.4034. Mushroom knob black grey thermoplastic. Thread lock blue polyamide.Version:Steel version: indexing pin hardened, ground and black oxidised. Stainless steel version: indexing pin hardened, ground and bright.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form CP is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back. The screw lock allows the plunger to be screwed in to the exact depth required, no spacer ring is required. The screw lock is a spotted-on polyamide coating that grips the screw flank.On request:Special versions.
