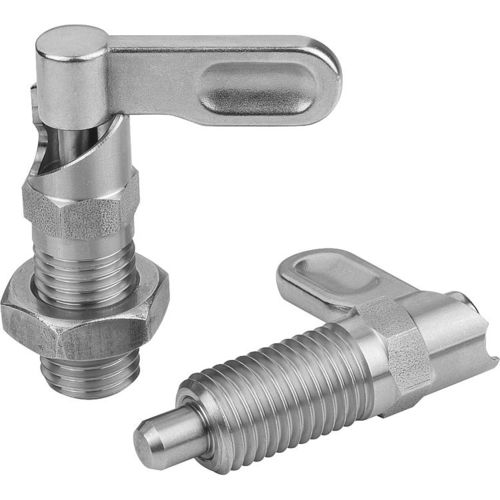

Stainless steel indexing plunger K1285 series

Material: Stainless steel 1.4305. Version: Bright. Indexing pin ground, not hardened. Note: Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin. A notch ensures that the handle remains in this position. A stop prevents the handle being rotated through more than 180° ensuring that the pin remains retracted. Selecting which side the stop is on defines the rotation direction of the plunger. Drawing reference: Form A: grip uncoated without nut Form B: grip uncoated with nut 1) stop left 2) stop right
