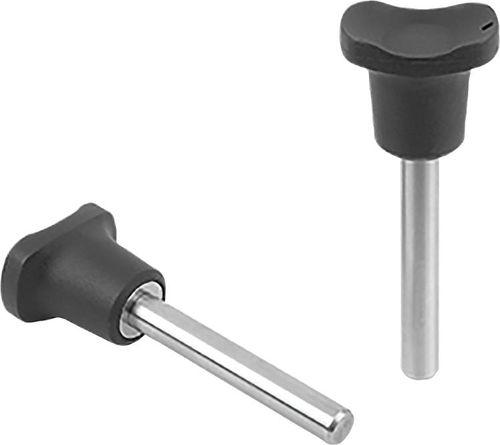

Locking pin K1216 series

locking pin
locking pin
locking pin
locking pin
Add to favorites
Compare this product


Description

Material: Grip thermoplastic. Steel parts 1.4305 stainless steel. Magnet NdFeB. Version: Grip black. Stainless steel bright.Note:The locking pins with magnetic axial lock are used for fast and easy fixating and joining of parts and workpieces. Magnets integrated into the grip ensure axial positioning and hold the locking pin in the inserted position. Smooth surfaces and a perpendicular insertion bore have a positive effect on the retaining forces. Optional retainer systems can be used to make the locking pins captive. Shear force double-shear (F) = S · τ aB max.On request:Other pin lengths.Accessory:Safety spiral cable K0367.... Retaining cable with loop K0367.... Key ring K0367.... Ball chains K1125....Drawing reference: 1) Magnet 2) Steel part/workpiece

Catalogs

No catalogs are available for this product.

See all of HEINRICH KIPP WERK GmbH & Co. KG‘s catalogs

Other HEINRICH KIPP WERK GmbH & Co. KG products

Operating parts | standard elements
