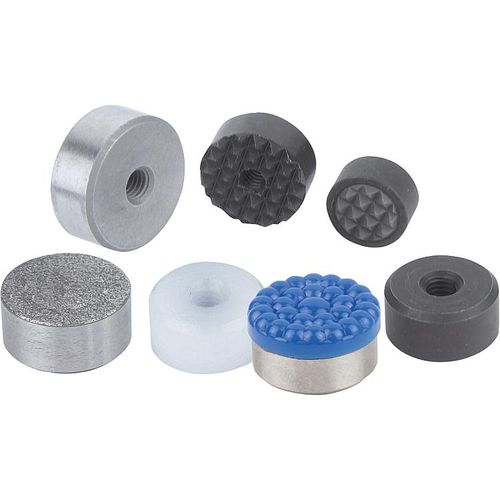

Threaded insert K0385 series

carbidediamondround

Material:Form C, F, M tool steel Form E, O, P stainless steel Form K POMVersion:Form C hardened and black oxidised. Form E hardened, bright. Form K white. Form O with diamond impregnated surface comparable to 100 grade abrasive grit. Form P with polyurethane surface, hardness Shore 60. Form F, hardened and black oxidised. Form M with carbide serrations, black oxidised. Note:Grippers and inserts are ideal for use in clamping arms, gripping systems, clamping fixtures, clamping jaws and self-aligning pads. The use of grippers allows the transfer of very high torque values and above average grip, even with hard materials and surface irregularities. Form O: The abrasive diamond surface is bonded firmly to the base. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface. The diamond surface offers excellent wear resistance. Form P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion-resistant and does not discolour. It offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads. Grippers and inserts can be fitted in the following self-aligning pads: Order No. K0285.117X022 up to K0285.936X036 Order No. K0289.110X015 up to K0289.924X100 Order No. K0291.120X030 up to K0291.924X080
