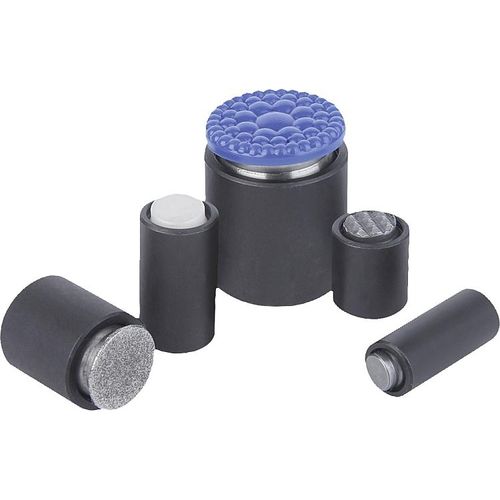

Pad K0284 series

Material:Body carbon steel. Ball: Form C, F tool steel. Form K POM. Form O stainless steel diamond impregnated. Form P stainless steel with polyurethane face.Version:Body tempered, black oxidised. Ball: Form C, F hardened, black oxidised. Form K POM ball, white. Form O surface comparable to 100 grade abrasive grit. Form P polyurethane, hardness 60 Shore.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces. They also serve as stops, supports and thrust pads in fixtures and toolmaking. Ball secured against rotation. Form O: The abrasive diamond surface is fused firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface. The diamond surface offers excellent wear resistance. Form P: The polyurethane surface is permanently vulcanised on the ball. It is abrasion-resistant and does not discolour. Offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out ensuring smooth and even movement.
