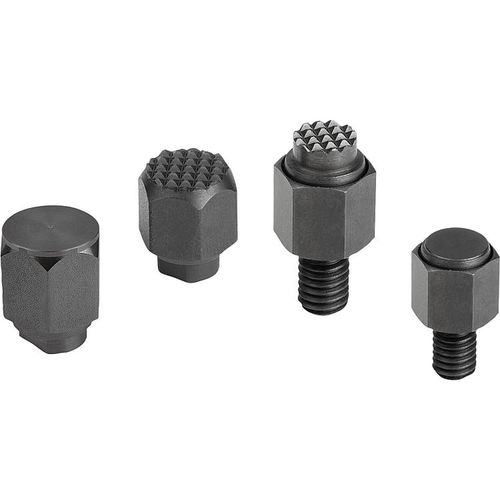

Pad K1164 series

Material:Form C and F: Ball steel, ball seat high-carbon steel. Form G and J: Ball high-carbon steel, ball seat steel.Version:Form C and F: Ball hardened and black oxidised, ball seat phosphated. Form G and J: Ball phosphated, ball seat hardened and black oxidised.Note:The self-aligning pads serve as stops, rests and thrust pads in fixture construction. The seating face returns to the start position when the load is removed. Ball secured against rotation.Drawing reference: Form C: male thread, flattened ball, smooth Form F: male thread, flattened ball, diamond grip Form G: press fit, flattened ball, smooth Form J: press fit, flattened ball, diamond grip
