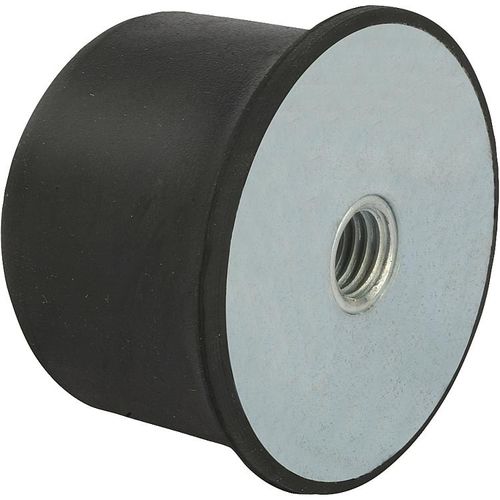

Shock buffer K0576 seriesfrictionrubberelastomer
Add to favorites
Compare this product
Characteristics
- Function
- shock
- Technology
- friction
- Material
- rubber, elastomer, steel
- Other characteristics
- robust
- Load capacity
Max.: 20,000 N
Min.: 3,000 N
- Thread length
Max.: 16 mm
(0.6 in)Min.: 10 mm
(0.4 in)- Thread diameter
Max.: 16 mm
(0.6 in)Min.: 10 mm
(0.4 in)- Height
Max.: 93 mm
(3.7 in)Min.: 35 mm
(1.4 in)
Description
Material:Metal parts steel, grade 5.6.
Elastomer natural rubber, medium hardness, Shore 55A.Version:Steel electro zinc-plated.Note:Rubber buffers are robust and effective elastic cushioning elements and shock absorbers. These buffers are ideal for elastic travel limitation and cushioning knocks by mobile and immobile aggregates and machines and as use as door stops.Temperature range:-30°C to +80°C.On request:Other Shore grades.
