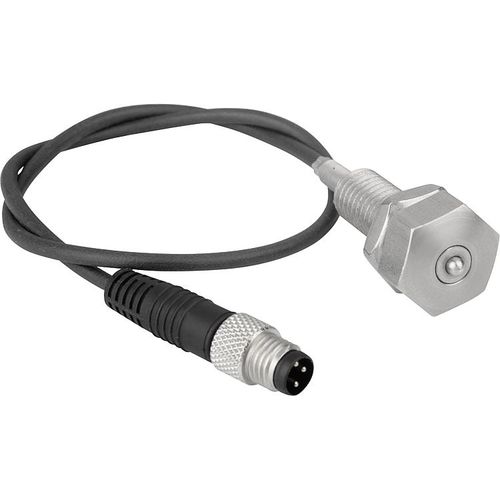

Stainless steel stop K0581 series

cylindrical

Material:Screw and plunger stainless steel 1.4301. Guide bush stainless steel 1.4112. Sensor housing stainless steel.Version:Screw and plunger, bright. Guide bushing, bright. Sensor housing, bright. Inductive sensor: Relay (NO) Operating voltage 10 - 30 V DC Operating current 100 mA Switching distance 0.8 mm Protection class: IP 67 Connection type: 0.3 m PUR cable with connector plug Temperature range: -25°C - +70°C Approval: CE, c-UL-usNote:The ensured sensing distance is achieved if the plunger is actuated flush up to the stop surface of the guide bush. The sensor is supplied unassembled. Installation recommendation: glue in with Loctite 638. Caution: screw sensor in until it comes to a stop.Safety:End position feedback stops are not suitable for personal protection.Drawing reference: 5) LED-indicator BN = brown BK = black BU = blue
