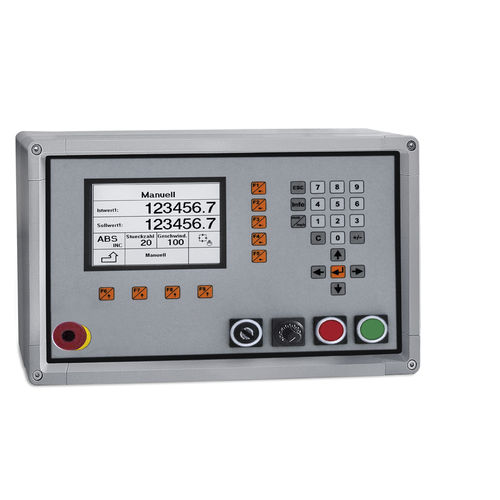

2-axis positioning controller PS 821
DCservomotorEthernet

2-axis positioning controller - PS 821 - HEJM Automatisierungstechnik GmbH - DC / servomotor / Ethernet
2-axis positioning controller - PS 821 - HEJM Automatisierungstechnik GmbH - DC / servomotor / Ethernet
Add to favorites
Compare this product


Characteristics

Number of axes
2-axis
Motor type
DC, servomotor
Signal type
RS-232, Ethernet, RS-485
Other characteristics
LCD display, touch screen, with integrated AC servo-drive
Product applications
positioning, control, for industrial applications, CAN bus, machines, OEM

Description

2-axis positioning controller with many options and touch display • 2-axis positioning controller • 5.7-inch color touchscreen, which can also be easily viewed from a greater distance • Additional keyboard with optional operating elements • Thanks to the available options, it can be optimally adapted to your specific application • Up to 99 programs and 6000 data sets, consisting of target value, quantity and additional functions, can be saved • Plug-in positioning unit with two integrated 12-bit analog outputs +/- 10V or 0 - 10V • The user has 24 inputs and 23 outputs available for a wide range of functions. • Optionally with additional PLC option for individual programming of your application • Comfortable transfer software from the PC to the PS 821
