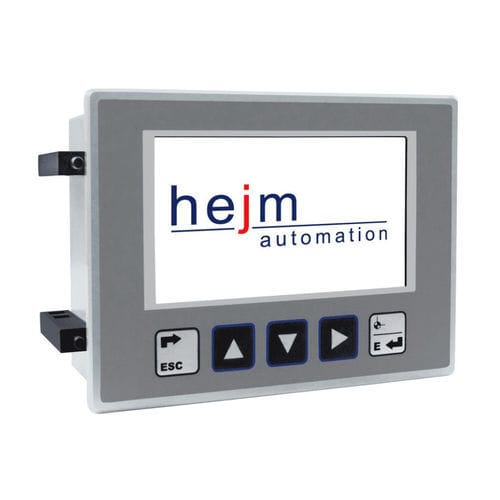

Position display MC531

TFTcolorgraphic

The multifunctional display for position measurement and dosing applications This device has a wide range of hardware options. With the corresponding software, the device can be adapted very flexibly to the specific application. • 3 incremental measuring system inputs with tracks A,A/,B,B/,Z,Z/ or A,B,Z On request: SSI interface for absolute measuring systems. • Optional measurement inputs for load cells. Integrated DC voltage measuring amplifier for resistive transducers with high measuring rate and resolution (24 bit). • USB and RS232 interface On request: RS485 or CANopen interface • Using the USB interface, additional bitmaps can be stored. These can then be used for the axis label, for example. This allows you to easily integrate your existing symbols on the MC531 display. • Many additional functions already integrated as parameters • Thanks to the 4.3” TFT color display, the user interface can be optimally designed according to your wishes. Additional message windows can also be linked to the inputs. This allows the display to integrate perfectly into your application. • Simple update of the software or management and backup of the parameters via USB stick. • Connection of barcode scanner and printer via the serial interface
