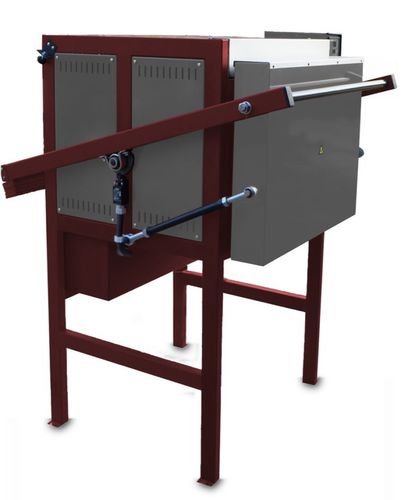

Chamber furnace ICF series

thermalhardeningelectric

Professional chamber furnaces Heldors ICF line is made for hardening, cementation and other thermal treatment processes of various materials in temperature range from 50⁰C to 1300⁰C in air conditions or with inertial gas (optional). Counterweight helps to open and close the doors very fast and easy. BASIC MODEL Strong and reliable frame construction Powder painted casing Free radiation wire heating elements on tubes Heating from three sides (two sides and bottom) Ceramic bottom plate Downward doors with counterweight Bearings for easy and durable door opening Chamber front arc and bottom made from bricks Reliable door sealing with fiber Lightweight insulation (low inertia) Hot surfaces around the arc made from stainless steel Top of the door covered with stainless steel (for loading-unloading) Solid state relay control PID temperature controller Thermocouple Independent over heat protection Ventilation OPTIONS Chamber made from bricks Door made from bricks Silicon carbide bottom plates Silicon carbide protection of heating elements Heat resistant stainless steel bottom plate Cooling fan Container for inertial gas Container for cementation Inertial gas connection with flow meter Lifting up doors Automatic door opening (electromechanical, pneumatic, hydraulic) operated by foot or hand switch Ramp programmable PID controller Touch screen Temperature recorder Zone control Table for load Sensors for emergency door stop Light signals Visual alarm for broken heating elements Furnace could be customized.
