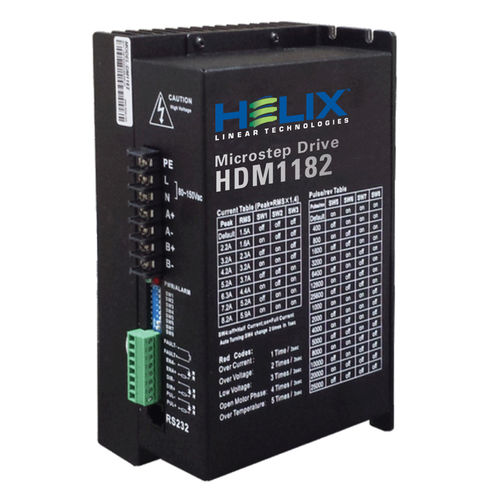

Stepper motor drive HDM1182

Description Anti-Resonance provides optimal torque and nulls mid-range instability Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement Microstep resolutions programmable, from full-step to 102,400. It can also be set via DIP switches. Soft-start with no “jump” when powered on Supply voltage up to +150 VAC Output current programmable, from 0.5A to 8.2A. It can also be set via DIP switches. Pulse input frequency up to 200 KHz TTL compatible and optically isolated input Automatic idle-current reduction (Reduction rate can be software configured) Suitable for 2-phase and 4-phase motors Support PUL/DIR and CW/CCW modes Over-voltage, Under-voltage, over-current, phase-error protectio
