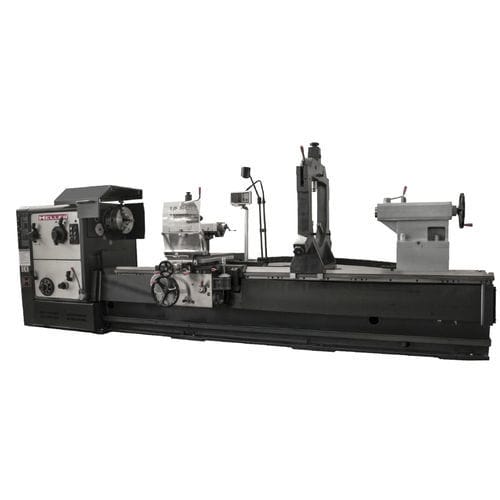

Conventional lathe TPG800X5000horizontal2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Diameter
800 mm
(31.5 in)- Spindle speed
Max.: 720 rpm
(4,523.893 rad.min-1)Min.: 7 rpm
(43.982 rad.min-1)- Bar capacity
100 mm
(4 in)- Rapids on X
0 mm/min, 24 mm/min
(0 in/s, 0 in/s)- Rapids on Z
1 mm/min, 12 mm/min
(0 in/s, 0 in/s)- Nominal power
15 kW, 20 kW
(20.4 hp, 27.2 hp)- Overall lenght
8,050 mm
(317 in)- Overall width
1,550 mm
(61 in)- Overall height
1,630 mm
(64 in)- Weight
6,900 kg
(15,212 lb)
Description
The TPG800X5000 Series, manufactured by Heller, is a conventional lathe equipped with steady rest and a coolant system. This contains Ø 320 mm jaw universal chucks and Ø 500 mm independent jaw chucks for an efficient operation. In addition to that, this conventional lathe is specifically designed for various industrial applications.
