3-axis CNC milling machine FV1400verticalISO 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- ISO 50
- X travel
800 mm
(31.5 in)- Y travel
400 mm
(15.75 in)- Z travel
500 mm
(19.69 in)- Rotational speed
Min.: 18 rpm
(113 rad.min-1)Max.: 1,800 rpm
(11,310 rad.min-1)- Power
0.04 kW, 0.05 kW
(0.05 hp, 0.07 hp)- Work feed X-axis
24 m/min, 30 m/min
- Work feed Y-axis
24 m/min, 30 m/min
- Work feed Z-axis
24 m/min
- Table load capacity
500 kg
(1,102 lb)- Weight
3,660 kg
(8,068.92 lb)- Overall length
2,290 mm
(90.2 in)- Overall width
2,040 mm
(80.3 in)- Overall height
2,120 mm
(83.5 in)
Description

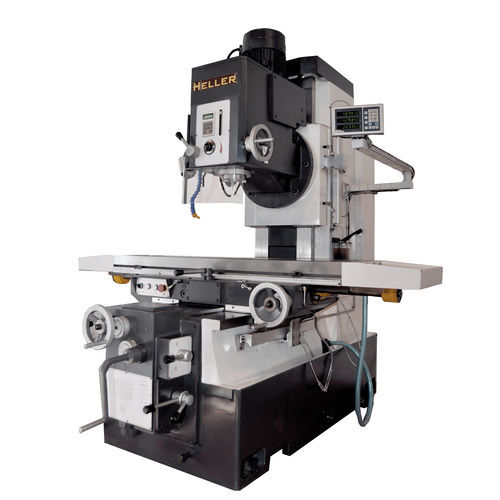

The FV1400 is manufactured by Heller. It is a 3-axis CNC vertical milling machine that has display FAGOR X, Y, Z and automatic movement X Y Z. It also features a clip holder set with 7:24 ISO 50 and mill holder shaft with Ø40 ISO 50. Furthermore, the FV1400 is a CE certified machine.
