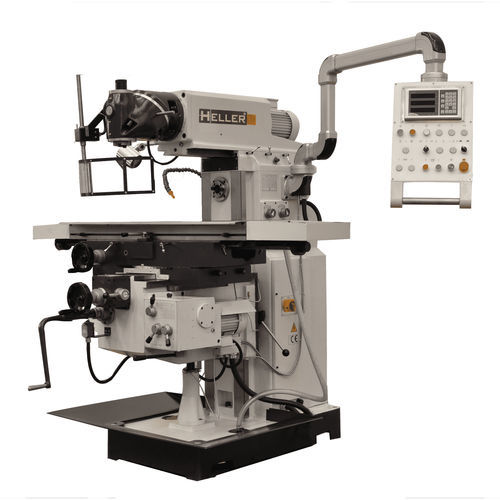

3-axis CNC milling machine FU1250universal
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- X travel
1,250 mm
(49.21 in)- Y travel
320 mm
(12.6 in)- Rotational speed
Max.: 1,300 rpm
(8,168 rad.min-1)Min.: 40 rpm
(251 rad.min-1)- Power
0.04 kW, 0.05 kW
(0.05 hp, 0.07 hp)- Work feed X-axis
Max.: 740 mm/min
(0 in/s)Min.: 8 mm/min
(0 in/s)- Work feed Y-axis
Max.: 740 mm/min
(0 in/s)Min.: 8 mm/min
(0 in/s)- Table load capacity
200 kg
(441 lb)- Weight
2,000 kg
(4,409.25 lb)- Overall length
2,300 mm
(90.6 in)- Overall width
2,200 mm
(86.6 in)- Overall height
2,115 mm
(83.3 in)
Description
The FU1250 Series, manufactured by Heller, is a universal milling machine equipped with a coolant collect tray and coolant system. This contains X, Y, Z axis rapid movement, X, Y, Z display FAGOR, and X-Y automatic movement. In addition, this machine is designed to drill, bore, cut gears, and produce slots.
