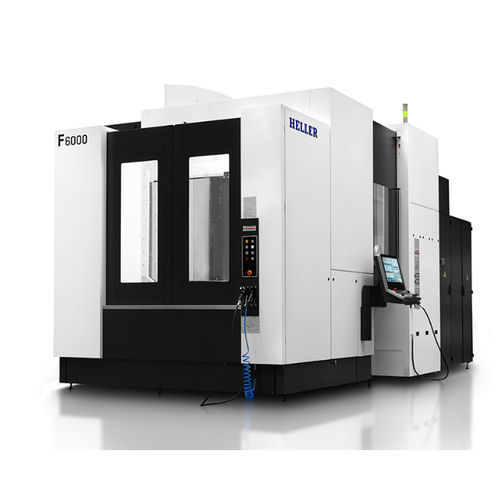

5-axis CNC machining center F series

horizontaltraveling-columnrotating table

The F 5000/6000 are the first of the new generation of 5-axis F series machining centres. With their head kinematics, the machines are designed from the ground up for flexible series production. Like all HELLER machines, they set a benchmark for cutting performance and precision. Other highlights include free chip fall, short idle times, optimum automation capability and compatibility with the H and FP series for a wide range of workpieces. In addition, both models come with top-of-the-range specifications and the option to add technologies such as Mill-Turn, interpolation turning or power skiving. Key facts designed for flexible series production from 24/7 to single-part production narrow footprint and low machine height of max. 3.9 m best-in-class cutting performance due to high-torque spindles and robust traversing column design upgradable with technologies such as Mill-Turn as an option for effective complete machining PRO equipment package as standard for high dynamics, low positional tolerances and simultaneous 5-axis machining key components ‘made by HELLER’ for maximum cutting performance and long-term reliability fast chip removal due to free chip fall and wide central chip conveyor easy automation with the ‘Automation-READY’ option, even at a later date without a rebuild Only the perfect combination of rigidity and lightweight construction results in a machine design that ensures optimum surface finish and a long tool life. As with all HELLER machines, the main components of our new generation F series have been designed using FEM.
