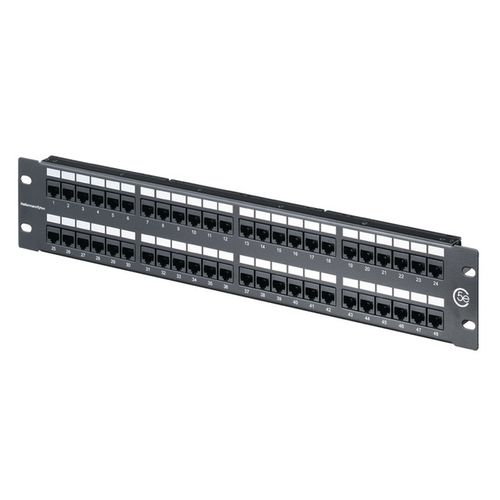

Category 5e patch panel c

modularRJ451U

Features •Exceeds Category 5e performance standards •Configured for T568A and T568B wiring •110 punch down IDC •Write-on labels provided for easy identification •Optional rear cable manager available •Available with or without Rack Snaps •Backward compatible with Category 5 and voice applications Description The Universal 110 Category 5e range of patch panels offer exceptional performance and are also available in 1U 24 port, 1U 48 port and 12 port vertical configurations. The 2U 48 port panel is constructed of 8 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced if damaged at any stage during installation. The Universal 110 2U 48 Port Panel is supplied with or without Rack Snap mounting fixings and a rear cable manager is also available. The Universal 110 Category 5e products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system. Features and Benefits • 6 port modules can be replaced easily if damaged during installation • Front face provides an attractive, flush appearance • Write-on labels provided for easy identification • Self-adhesive labels are available for use with HellermannTyton TagPrint Pro software* • Universal panels are pre-assembled with T568B wiring; however, they can be used for both T568A and T568B wiring configurations, thus eliminating the need for extra inventory • HellermannTyton offers a very simple, easy-to-install rear cable manager which is recommended for all Category 5e installations • Sturdy and smooth rolled edges • Clear plastic channel protects PCB and allows easy viewing of wiring label
