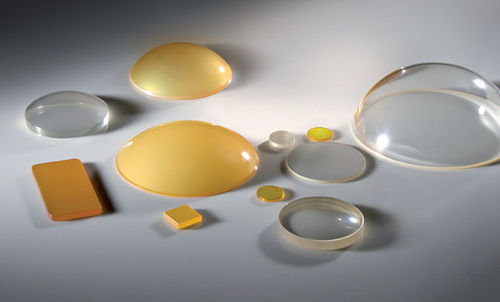

Zinc sulfide (ZnS) optical component

CVD Ceramics‘ chemically vapor deposited CVD Zinc Sulfide® is the low cost alternative for infrared windows, domes and optical elements. With a fracture strength double that of zinc selenide and high hardness, zinc sulfide has been used successfully in many military applications requiring mechanical resistance to hostile environments. Cleartran® is a form of CVD Zinc Sulfide® material that is modified by a post-deposition hot isostatic process. This process removes zinc hydrides from the crystal lattice, normalizes crystal structure and purifies the material. These contribute to single crystal-like transmittance in the visible through far infrared ranges (0.35 -14 microns). With its low absorption and scatter throughout its broad transmitting range and high optical quality, Cleartran® is particularly well-suited for multi-spectral applications that require a single aperture for beam path for several wavebands. CVD Zinc Sulfide® and Cleartran® are chemically inert, non-hygroscopic, highly pure, theoretically dense and easily machined. Custom diameters, rectangles, CNC-profiled blanks, generated lens blanks, prisms and near-net shape domes can be made to your specifications.
