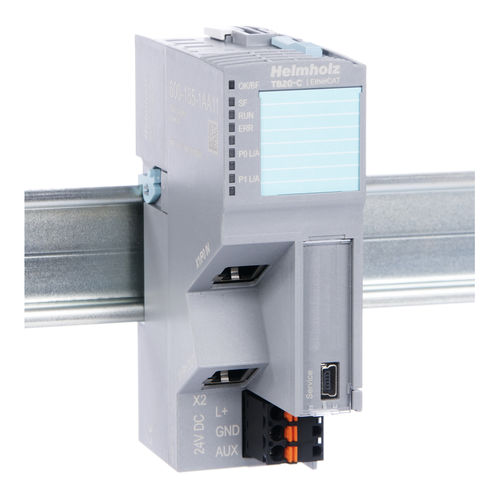

Electronic coupler 600-185-1AA11

EtherCATbusI/O

A functioning TB20 configuration will always require a bus coupler and at least one peripheral module. The EtherCAT bus coupler makes it possible to access data from peripheral modules using the EtherCAT protocol. It can accommodate up to 64 modules of any kind connected in series with the bus coupler. It detects peripheral modules that are plugged in and can assign the corresponding I/O data to an EtherCAT mapping automatically. The EtherCAT bus coupler supports the Modular Device Profile. A large I/O image table size of 1,024 bytes makes it possible toimplement comprehensive and complex systems. TB20 ToolBox can be used to easily configure the system and the various module parameters and transfer the corresponding settings to the coupler. Alternatively, the configuration can also be edited using the CoE object dictionary. Finally, running TB20 systems can be diagnosed in real-time and set up for testing purposes if an EtherCAT master is not yet connected (simulation / I/O check). A functioning TB20 configuration will always require a bus coupler and at least one peripheral module.
