ProfiNet coupler PN / PN

fieldbusbuscompact

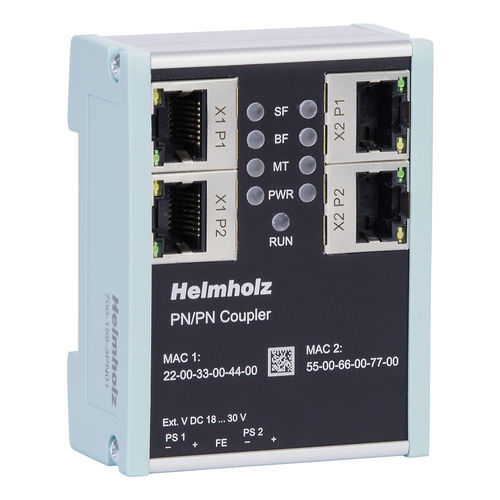

Machines and systems can be linked with fieldbus couplers. This makes data exchange between different control worlds possible. A complex CPU-to-CPU communication can be omitted. Depending on the fieldbus, the integration takes place via device description files such as GSD, GSDML or EDS. With the PN/PN Coupler, a simple and uncomplicated connection of two separate PROFINET networks is possible. The PN/PN Coupler enables data transmission between two PROFINET controllers. A PROFINET IO device is on both PROFINET network sides. Received input data on one of the network sides is made available as output data to the other network side. The IO data transfer takes place live and as quickly as possible without additional handling blocks. The maximum size of the transmitted IO data is 1024 bytes. Up to 16 slots for IO modules of 1 byte and up to 128 bytes are available. With the "data record transfer" function, even large amounts of data with up to 4096 bytes can be exchanged between the machines using the FIFO principle. The data record transfer uses standard PLC handling blocks. The incorporation into the PLC engineering tool is made possible by a GSDML file Exchange of up to 1024 bytes of I / O data Data record transfer with up to 4096 bytes Redundant power supply Galvanic separation of the nets Configuration just with GSDML file, no further software required No influence on the opposite side in case of failure of the bus system General information Scope of deliveryPN/PN Coupler with power supply plug Dimensions (DxWxH)32.5 x 58.5 x 76 mm WeightApprox. 135 g Status indicator Funktion status9 LEDs Ethernet status8 LEDs
