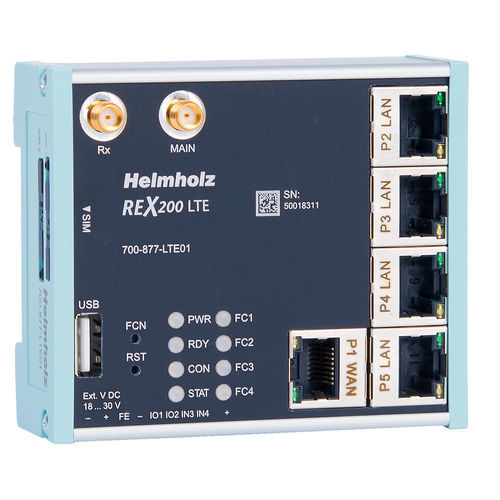

Data communication router REX 200

3GIPWAN

The REX 200 routers are designed for operation in conjunction with the myREX24 V2 portal: The complete parameterization and remote maintenance is carried out via the portal. In addition to remote maintenance, the REX 200 routers can also read data from the PLC, visualize and generate alarms. For remote maintenance and data transmission, the industrial router uses an encrypted VPN tunnel based on the secure OpenVPN protocol. With the 4 digital inputs, alarms can be sent via SMS and email via the myREX24 V2 Portal. The 2 digital outputs can be system states of the router, e.g. with a lamp on the control cabinet, or can be activated via the portal. The USB host interface available on all devices enables the connection of USB device devices (eg programming interface of a drive) via the remote maintenance tunnel (USB-over-IP). The REX 200 LTE has an LTE modem, which connects to the myREX24 V2 portal. The WAN interface, which is also available, can form a fail-over network in conjunction with the 3G modem. The integrated 4-port switch can be used to connect the Ethernet nodes of the machine to the router on the available RJ45 ports. The LTE modem used supports use in Europe and Asia. For using the router in North America, please use the "REX 100 with LTE modem for North America" (700-875-LTE11). In general, before using an LTE router, please compare the LTE frequency bands of the selected device with the supported frequency bands of the provider in the country of use. We will be happy to help you.
