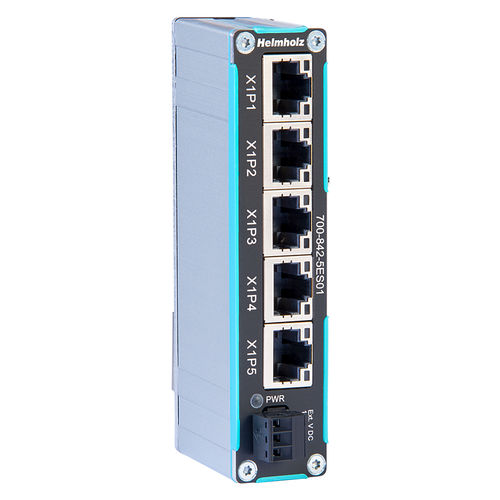

Unmanaged ethernet switch FLEXtra SLIM

5 ports8 ports8 ports

The unmanaged Ethernet switch impresses with its lightweight yet robust design. Thanks to its ultra-compact and space-saving design, it is also suitable for control cabinets with limited space, such as those found on extensive conveyor belt systems in the field. The switch is suitable for DIN rail mounting and is very easy to integrate into your network. Once plugged in, it is immediately ready for operation thanks to the simple plug & play installation. No configuration is necessary. The 5-port unmanaged Ethernet switch is suitable for PROFINET networks. The LLPD (neighbourhood detection) and PTCP (time synchronisation) functions are handled correctly with the switch in accordance with the PROFINET standard. The unmanaged Ethernet switch therefore complies with PROFINET Conformance Class A. Connect up to 5 Ethernet devices at 10 or 100 Mbit/s. Store-and-Forward architecture 10Base-T/100Base-TX Full-/Half-Duplex Autonegotiation Auto MDI/MDI-X (IEEE 802.3u Auto crossover support) LLDP & PTCP Delay-Traffic blocking (for PROFINET networks) PROFINET Conformance Class A QoS-Priority-Queues: 2 per port 1K MAC address lookup table 448K bit packet buffering max forwarding packet length 1552 bytes
