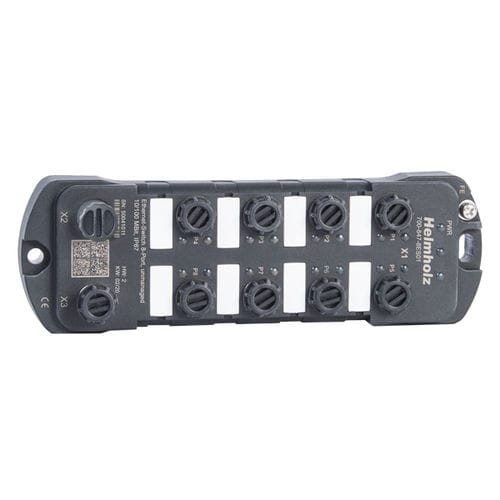

Unmanaged ethernet switch FLEXtra

8 portsProfiNetstandard

Thanks to its high IP67 protection class and temperature range from -40 °C to +75 °C, the IP67 unmanaged Ethernet-Switch is ideal for use in rough industrial environments. The Helmholz unmanaged Ethernet-Switch IP67 is a very compact switch for a wide range of industrial applications. The product is ideally suited for installation without a control cabinet and therefore offers a wide range of applications. Once plugged in, the simple Plug & Play solution makes it immediately ready for use. The unmanaged Ethernet switch is suitable for PROFINET networks. The LLPD (neighborhood detection) and PTCP (time synchronization) functions are handled correctly with the switch in accordance with the PROFINET standard. The unmanaged Ethernet switch thus corresponds to PROFINET Conformance Class A. With this variant of the unmanaged Ethernet switch you can connect up to 8 Ethernet subscribers with 10 or 100 Mbps. Store-and-Forward architecture 10/100Base-T/TX, Full-/Half-Duplex (Autonegotiation) HP Auto MDI/MDI-X & IEEE 802.3u Auto crossover support CoS according to IEEE 802.1Q Qos-Priority-Queues: 8 PROFINET Conformance Class A 16K MAC address lookup table 256 KByte memory for frame buffering Switch cabinet-less mounting possible
