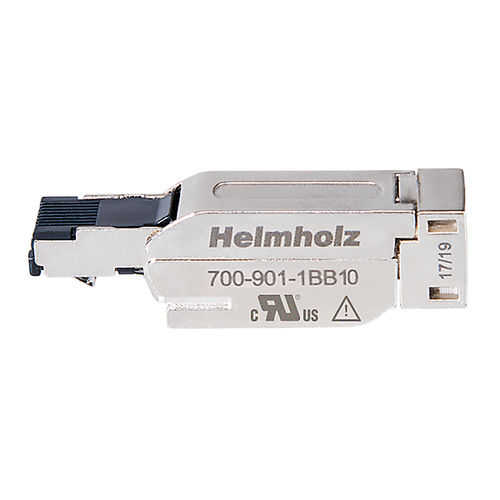

Data connector 700-901-1BB10RJ45Ethernettransmission
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- RJ45, Ethernet
- Product applications
- transmission
- Domain
- industrial, fast
- Protection class
- IP20
- Other characteristics
- ProfiNet, EtherCAT
- Data rate
Min.: 0 Mb/s
Max.: 100 Mb/s
- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 70 °C
(158 °F)
Description
The field-assembled RJ45 connector for PROFINET, Modbus, and EtherCAT is easy and quick to install.
The industrial-grade metal housing provides the necessary ruggedness so that the plug can be used in many industrial applications.
To save the user time in wiring, the RJ45 connector can be assembled in a single step using the fast connection technology EasyConnect®. Solid single wires and strands can be used. The color-coded contact elements also help avoid connection errors.
With a PROFINET cable of up to 100 m length, Ethernet components such as a PROFINET station can be connected. In addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates up to 100 Mbps.
Color-coded contact elements help to avoid connection errors
Transmission rates up to 100 Mbps
No loose individual parts
Tool-free installation
180° axial cable outlet
