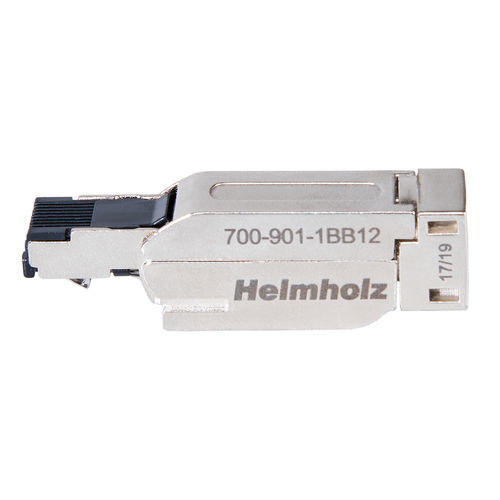

Data connector 700-901-1BB12RJ45Ethernettransmission
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- RJ45, Ethernet
- Product applications
- transmission
- Domain
- industrial
- Protection class
- IP20
- Other characteristics
- rugged
- Data rate
10 Mb/s, 100 Mb/s, 1,000 Mb/s
- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 70 °C
(158 °F)
Description
The industrial-grade metal housing provides the necessary ruggedness so that the plug can be used in many industrial applications.
To save the user time in wiring, the RJ45 connector can be assembled in a single step using the fast connection technology EasyConnect®. Solid single wires and strands can be used. The color-coded contact elements also help avoid connection errors. In addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates up to 1000 Mbps.
Color-coded contact elements help to avoid connection errors
Tool-free assembly
EasyConnect® RJ45 connector (IDC) for industrial applications
Suitable for cables up to Cat.6
180° axial cable outlet
Catalogs
No catalogs are available for this product.
