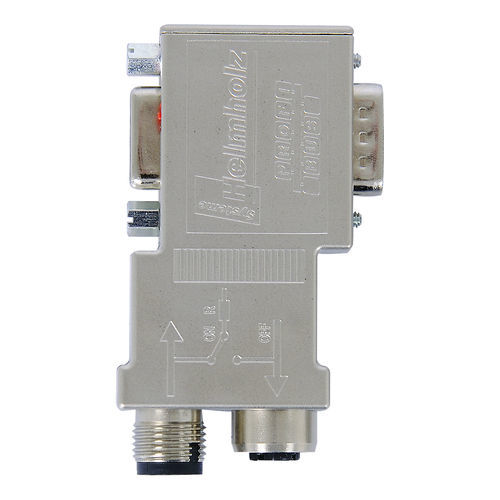

Data connector 700-974-0BB12screwM12housing
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- screw
- Size
- M12
- Product applications
- housing
- Protection class
- IP20
- Other characteristics
- PROFIBUS
- Primary current
Max.: 12.5 mA
Min.: 0 mA
- Voltage
Max.: 5.25 V
Min.: 4.75 V
- Data rate
Max.: 12 Mb/s
Min.: 0 Mb/s
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
Through the use of pre-assembled system cables, connection errors are excluded. Installation costs are reduced to a minimum.
The connector has two M12 connections and integrated terminating resistors. For improved electromagnetic compatibility, the housing is metalized.
The PROFIBUS connector works in the extended ambient temperature range of -25 °C to +85 °C.
Additional participants can be connected via the integrated PG interface.
Metalized housing
No parts that can be lost
Integrated switchable terminating resistor
90° cable outlet
Proven screw terminal
The maximum ambient temperature for UL is +60 °C.
Integrated PG interface
