Communication gateway 700-673-PNC01

industrialmediaUSB

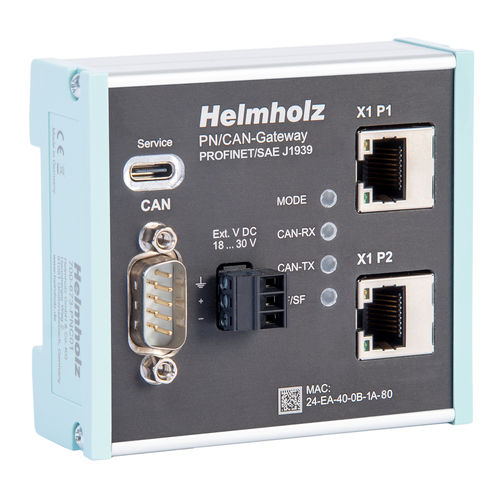

With the PN/CAN gateway an easy and uncomplicated connection of CAN devices to a PROFINET network is possible. The PN/CAN-Gateway SAE J1939 can be used as a complete SAE J1939 device or for the simulation and diagnosis of an SAE J1939 network. The data of the Parameter Groups (PGNs) can be exchanged directly in the I/O data area of the PLC. The gateway is completely configured with the help of a GSDML via the PROFINET configuration and does not require any additional software. The source address (SA) is freely adjustable. Single and multi-package messages are freely available in direct communication and as requests. In addition, the device can be used as a passive participant for transparent reading of PGN messages of an SAE J1939 network. The features MRP (media redundancy) as well as extensive diagnostic functions and an interface for online diagnostics complete the performance features of the PN/CAN gateway. Complete SAE J1939 device Broadcast and TP Protocols Supports PDU1 format (dynamic DA) and PDU2 format (group extensions) Protocol Abort Reasons directly readable in the input area Parameterizable priority and EDP Parameterizable device name including the arbitrary address enable bit Dynamically definable SA/DA Automatic response to requests of the parameterized PGNs PGN requests for single and multi-reponses (e.g. diagnostics) Cyclic transmission and time-controlled reception of Single Package and Multi Package PGNs with parameterizable timing Event-triggered sending of PGNs
