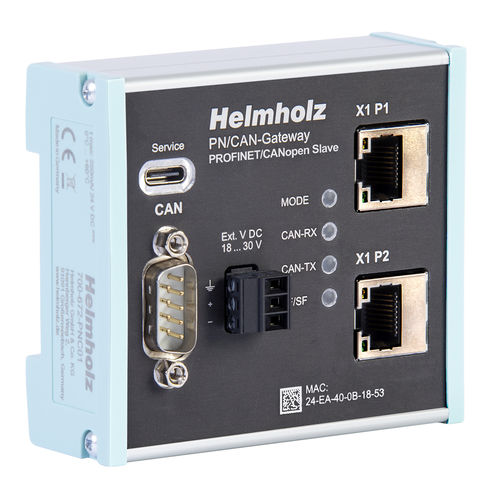

Communication gateway 700-672-PNC01

mediaUSBCAN Bus

With the PN/CAN gateway an easy and uncomplicated connection of CAN devices to a PROFINET network is possible. The PN/CAN gateway "CANopen Slave" enables the coupling of machines with CANopen bus to machines with PROFINET network and represents a freely configurable full CANopen Slave Device at the CAN bus. On the PROFINET network the PN/CAN gateway "CANopen Slave" is a PROFINET I/O device and supports transfer rates up to 100 Mbit full duplex. The data of the CANopen SDOs are transparently and freely configurably inserted into the PROFINET network and can thus be read or written directly in the PLC. The PN/CAN gateway is integrated into the hardware configurator of the PROFINET controller with a GSDML file, and all values of the CANopen slave are available as IO information. Special handling blocks are not necessary. An EDS or DCF file is used to permanently load a plant-specific CANopen device configuration into the device. The gateway supports CANopen network management, nodeguarding/heartbeat, emergencies and SDO accesses on the CAN bus. Up to 16 RX- and Tx-PDOs can be parameterized. It is also possible to parameterize the CANopen device including PDO mapping via the CAN bus and to send customer specific emergency messages. The features PROFINET MRP (media redundancy) as well as extensive diagnostic functions and an interface for online diagnostics complete the performance features of the PN/CAN gateway. Up to 16 TPDOs / 16 RPDOs Up to 1 Mbit/s CAN bit rate CANopen NMT, Heartbeat, Nodeguarding, Emergency Configuration via EDS/DCF file and GSDML file No handling blocks necessary
