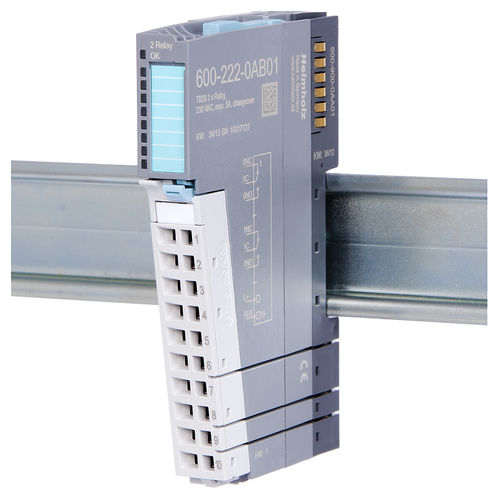

Digital output module 600-222-0AB012-O4 digital outputswith relay output
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Number of inputs/outputs
- with relay output, 4 digital outputs, 2-O
- Applications
- voltage, current
- Mounting
- DIN rail
- Other characteristics
- IP20
Description
The scope of delivery already includes the appropriate front connector for the cabling and a base module. The module has 4 changeover relay outputs.
Dry contact switching
5 A output current per relay
Up to 230 V AC switching voltage per relay
Switching operation counter: two input words (switching operations *1,000)
Transient filter for protection against high-frequency relay switching (10 Hz)
A blue LED indicates the module's operating status
Green LEDs (one for each output) indicate the output status
Four changeover relays
