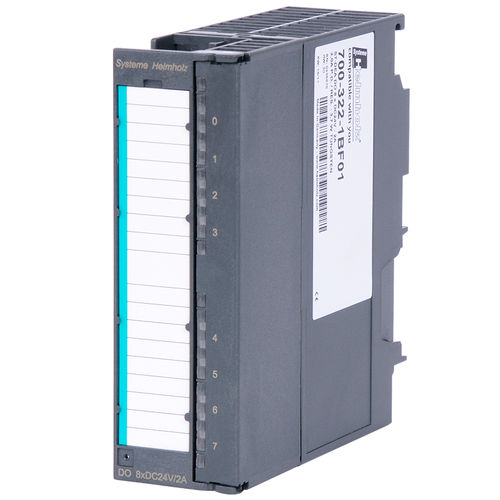

Digital output module 700-322-1BF01

8 digital outputscurrentvoltage

Digital output modules for the 300 series General information Scope of deliveryDEA 300, DC 24 V, 2 A, 8 outputs Dimensions (DxWxH)116 x 40 x 125 mm WeightApprox. 220g Rated value2 A Power dissipation (nominal operation)typ. 6.8 W Front connectors20-pin Electrical isolation from the backplane busYes (optocoupler) in groups to4 Supply voltage UP, US Rated value24 V DC Ripple USSmax. 3.6 V Permissible range (with ripple)+20 … +30 V Voltage for t < 10 msmax. 40 V Short-circuit protection Short-circuit protectionElectronic Short-circuit currentTyp. 12 A clocked Inductive cutoff voltage limit-23 V Cable length Unshieldedmax. 600 m Shieldedmax. 1000 m Current draw Current draw typicaltyp. 40 mA Current draw maximalMax. 60 mA Ambient conditions Ambient temperature0 °C … +60 °C Transport and storage temperature-25 °C … +75 °C Pollution degree2 ApprovalsCE
