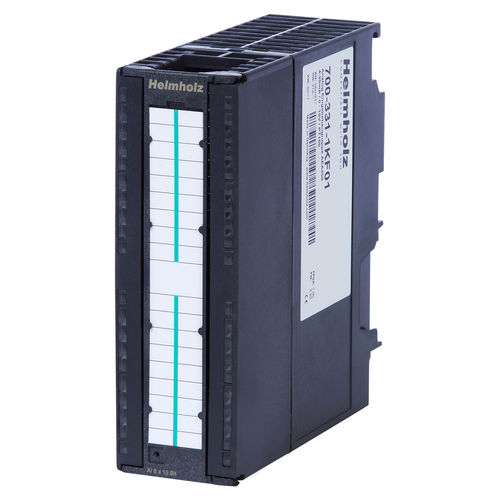

Analog input module 700-331-1KF01

8 analog inputscurrentvoltage

The analog input module is suitable for connection of current transmitters in the range up to ± 20 mA, voltage transmitters in the range up to ±10 V, Pt100/Ni100 sensors, and resistors. All inputs can be programmed either as voltage or current inputs for Pt100/Ni100 sensors and resistors, freely selectable in their combination. The signal lines are connected to the corresponding front connectors and can be marked in the label field. The modules can be fully parameterized with the hardware configurator of the programming software. A hardware configuration is not necessary (no measuring range module). Configurable inputs
