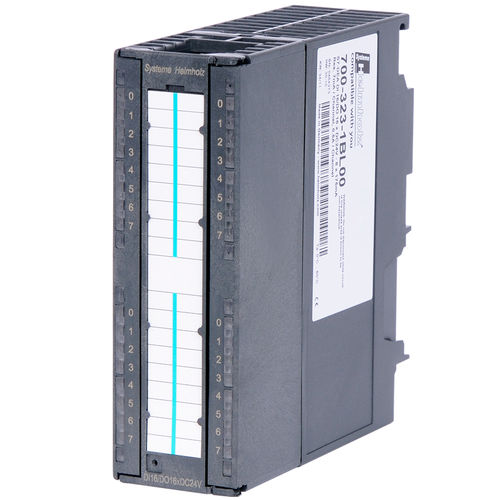

Digital I/O module 700-323-1BL00

Fieldbus16-I/Ocurrent

Digital mix modules for the 300 series General information Article nameDEA 300, DC 24 V, 0.5 A, 16 inputs (DC 24 V)/16 outputs (DC 24 V, 0.5 A) Scope of deliveryDEA 300, DC 24 V, 0.5 A, 16 inputs (DC 24 V)/16 outputs (DC 24 V, 0.5 A) Dimensions (DxWxH)116 x 40 x 125 mm WeightApprox. 220g Power dissipation (nominal operation)typ. 6.8 W Front connectors40-pin Input voltage For signal "0”-3 ... +5 V For signal "1”+13 ... +30 V Rated value24 V DC Input current for signal “1”typ. 7 mA Delay time1.2 ... 4.8 ms Can accommodate 2-wire initiatorYes Permitted bias current for signal "0”1.5 mA Cable length Unshielded600 m Shielded1000 m Electrical isolation from the backplane busYes (optocoupler) in groups to16 Rated value0.5 A Short-circuit protectionElectronic Inductive cutoff voltage limit-48 V Supply voltage UP, US Rated value24 V DC Ripple USSmax. 3.6 V Permissible range (with ripple)+20 … +30 V Voltage for t < 10 msmax. 50 V Current draw Internal (backplane bus)typ. 90 mA External (from +24 V/L+)Max. 120 mA Ambient conditions Ambient temperature0 °C … +60 °C Transport and storage temperature-25 °C … +75 °C Pollution degree2 ApprovalsCE
