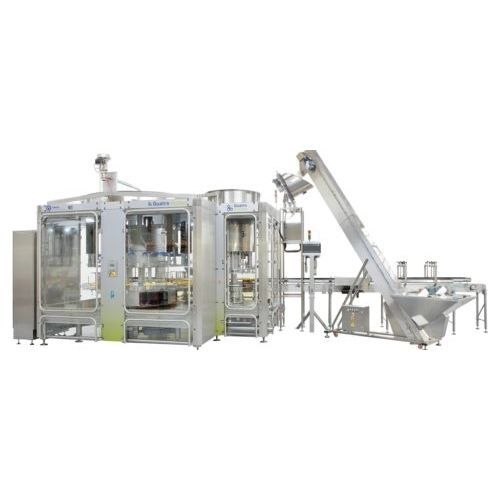

Monobloc filler-capper

for bottleselectronically controlledstand-alone

The capping turrets are either integrated within our filling monobloc equipment or stand-alone. They are equipped with 3 to 22 heads for a speed of up to 40 000 caps per hour (depending on the type of cap and bottle used). • The various models can deal with different types and formats of caps (screw-on, snap-on, pump, trigger, etc.) • We offer 2 versions: • Mechanical • Brushless The above use electronic control techniques for speed and coupling. Each capping head is equipped with a servomotor which adjusts the capping specifications to the different types of cap. • A range of ultra-clean cappers is available to meet the requirements of a hygienic environment. Their design ensures optimal cleaning for the filling of sensitive products (dairy products, etc.). • Elevators that stock and transport the caps to the dispenser. • Elevator-Orientators select the direction and transport caps at high speed within the same machine. They replace the elevator-distributor duo. • Cap buffer is installed on the filling and capping monobloc in the Combi configuration. It receives the directed caps and feeds the cap turret with the caps.
