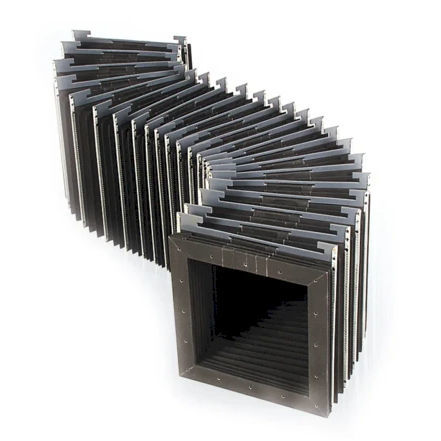

Rectangular bellows ELASTIC

PVCPPaccordion protection

The ELASTIC bellows are used e.g. for lifting table applications or round sewn as an alternative to spiral springs to protect shafts, columns and spindles. In the design as a LAMINAT bellow this has a high inherent rigidity due to the combination of two materials. As a bellow for jet cutting machines (laser, plasma or water jet), the ELASTIC bellow protects mechanical components such as spindles and guides, but also serves to protect the jet channel. The ELASTIC series includes numerous combination options. The basic components as well as material, shape, type of processing and dimensions are individually adjusted. Stabilized PVC frames in each fold, combined with the individual bellow material ensure a long lasting stability. Even with mechanical deformation, this structure ensures a return to the original form. The connection of the bellow material to the support or guide frames can be done by various types of processing - thermally bonded, HF-welded or sewn.
