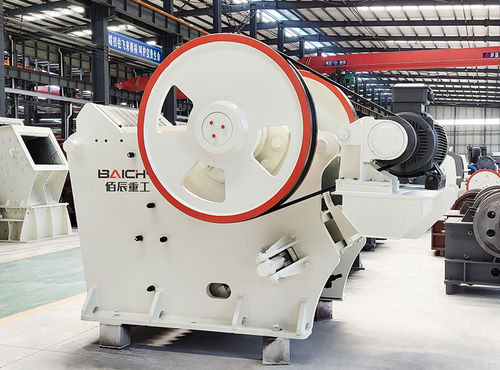

SKJ series Jaw Crusher is the top choice to crush hard, strong-corrosive materials with unique structural design, working performance, service life and maintenance. Motor is set on the machine body, which can reduce occupied space effectively.
Application
With high-quality steel casting and overwhelming reliability, SKJ jaw crusher is widely as primary crusher to crush hard stone, rock, granite, andesite, quartz, limestone in sand, gravel, aggregates or mineral processing industry.
Applicable materials: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.
The complete machine adopts modular design, which makes disassembly and transportation more convenient.
Quality Assurance
More advanced movable jaw assembly lengthens the using life. High manganese steel castings jaw plate can be reversed to extend life and save cost.
Customized Scheme
Integral bearing seat fits the frame completely. It enhances the radial strength and reduces the maintenance cost.
The discharge opening is adjusted by hydraulic and wedge block type. It makes discharge opening adjustment more convenient and makes maintenance more automatic.
A Jaw Crusher uses compressive force to break hard stone material. There two vertical manganese jaw plates create a V-shaped cavity called crushing chamber, where the top of the crushing chamber is larger than the bottom. The moving jaw moves back and forward against the fixed jaw, and material fed from the top chamber is compressed between the two jaws, breaking it into smaller pieces.
