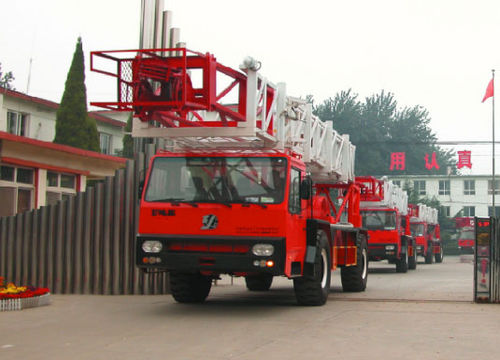

Diesel tractor TJ12 series

wheel-mountedautomatedcompact

The wheeled tractor hoist is a kind of onshore minor repair operation equipment, which is composed of the diesel engine, the hydraulic transmission, the special-purpose chassis, the work installment and so on. The products conform to SY/T5376“Petroleum Tractor Hoist”, API Spec 4F " Specification for Drilling and Well Servicing Structures " and related standard, and have obtained the certificate of authority to use API monogram. Our company is drafting enterprise of SY/T5376 "Petroleum Tractor Hoist" profession standard. Technical Features 1. The wheeled tractor hoist equipped with the special-purpose chassis, the low speed heavy load bridge and the low pressure wide base tire. It can use all wheel drive, it is easy to move, the cross-country performance is good. 2. Use hydraulic flexible drive, its output characteristics can vary automatically along with the outer loading, the transmission is steady, the failure rate is low. 3. The drawworks use the gear box transmission, The drum is equipped with Lebus rope groove, the structure are compact, the efficiency is high, the service life is long. 4. The mast is a structural mast, the hydraulic cylinder carries out lifting and expansion, the derrick upper body bearing unit equipped with cylinder bearing organ that is the turning block type, which structure is simple, safe and reliable. 5. The drawworks is equipped with the belt brake, and the hydraulic assist brake, the operation is facile, reliable. 6. Use entire hydraulic diverter, the travel nimble convenient, the relocation is convenient, the installment is quick. 7. The crown block anti-collision device is responsive, safe and reliable.
