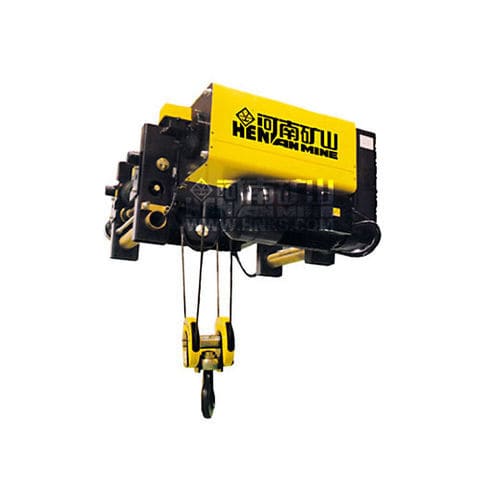

Electric cable hoist

compactEuropean standardlow-headroom

•Capacity: 1-20 ton •Lifting height: 6/9/12/18m •Lifting speed: 0.6/4.0m/min-1.6/10m/min •Widely used in: Factories, warehouses, etc. European Wire rope Electric hoist is a new kind of low headroom product. Design and manufacturing are according to Europe standard FEM and DIN, the product is researched and developed at the basis of general planning the lift capacity, basic structure, mechanism working system and performance parameters,and modular design idea. It applies international general structure with the characteristics of compact structure , high space utilization, reliability, large working scope, smooth travelling to realize precise position to load, long life span and low maintenance expenses. We believe the product is your best choice. European Wire rope Electric hoist adopts Double winding Squirrel cage variable pole motor with 1:6speed ratio,the motor has a two-disc electromagnetic brake,which can brake up 1million time, no need repair, aluminum alloy shell. Lifting reducer is Multi-level gears that are surface-hardened and processed by high-precision grinding. Hoist traveling motor & reducer is Three-in one reducer,British wirerope or Korean wire rope with tensional strength 2160mpa.
