- Building - Construction
- Construction and Mining Equipment
- Jaw crusher
- Henan LIMING Heavy Industry Science and Technology
Jaw crusher Y3S23G93E46Y55Bmobileprimarysecondary
Add to favorites
Compare this product
Characteristics
- Technology
- jaw
- Mobility
- mobile
- Other characteristics
- primary, secondary, high-capacity, sand production, for mineral material, fine, for building materials, tertiary
- Capacity
Max.: 60 t/h
(36.7 lb/s)Min.: 15 t/h
(9.2 lb/s)- Weight
45 t
(49.6 us ton)
Description

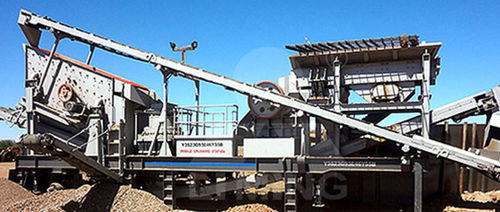

Combination Mobile Crusher
Wide applications, Comprehensive functions
Combination Mobile Crusher is suitable for the case that project location should be changed frequently. This plant integrates vibrating feeder, primary crusher, secondary crusher and vibrating screen together, which provides holistic solutions for clients. And it takes advantages of small coverage area and convenient process.
Applications: Secondary medium & fine crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
Specifications – Technical Data
Multi-Combination Mobile Crusher
Technical Data//Model - Y3S23G93E46Y55B
Transportation size (mm) - 14700x2900x4350
Weight(t) - 45
Tire Configuration - Dualaxial
Vibrating feeder - GZD 960×3800
Crusher 1 - PE400x600
Crusher2 - PYB900
Vibrating screen - 3YZS1237
Belt conveyer above screen - B500x14m
Belt conveyer under screen - B650x6m
Main belt conveyer - B650x9m
Side belt conveyer - B500x4m / 2
Electric control (standard) - control box + control panel
Support leg (standard) - 4
