Impact crusher KF1315-2

mobilehigh-capacitysecondary

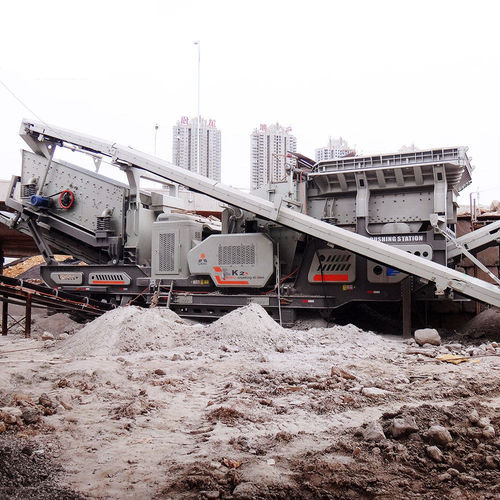

KF1315-2 Mobile Impact Crusher Stable, Flexible, Efficient, Functional Mobile Impact Crusher can process medium hard stones, and final products can be used in road, bridge, construction and water conservancy, etc. industries. As one process of crushing work, mobile Impact Crusher can meet different requirements about capacity and output size by changing models. Applications: Primary coarse & medium crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy. Feeding Equipment: 3YZS2160 Crushing Equipment: PFW1315Ⅲ Max. preparedness capacity(t/h): 180-350 Overall Dimension: 13800×3150×4500(mm) Features 1. It adopts ship form steel structure and low vehicle chassis with light weight. 2. Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed. 3. Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening. 4. The vehicle control cabinet is equipped with high-tech LCD touch screen and PLC control system. It is convenient, efficient and secure. 5. Grizzly bars of the feeder is capable to separate out the small-sized material as the wastes. 6. Height of belt conveyor is adjustable. It also can be twisted and folded. 7. Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance. 8. With overall streamlined body design and metallic paint spraying, this plant is the perfect combination of mechanics and aesthetics.
